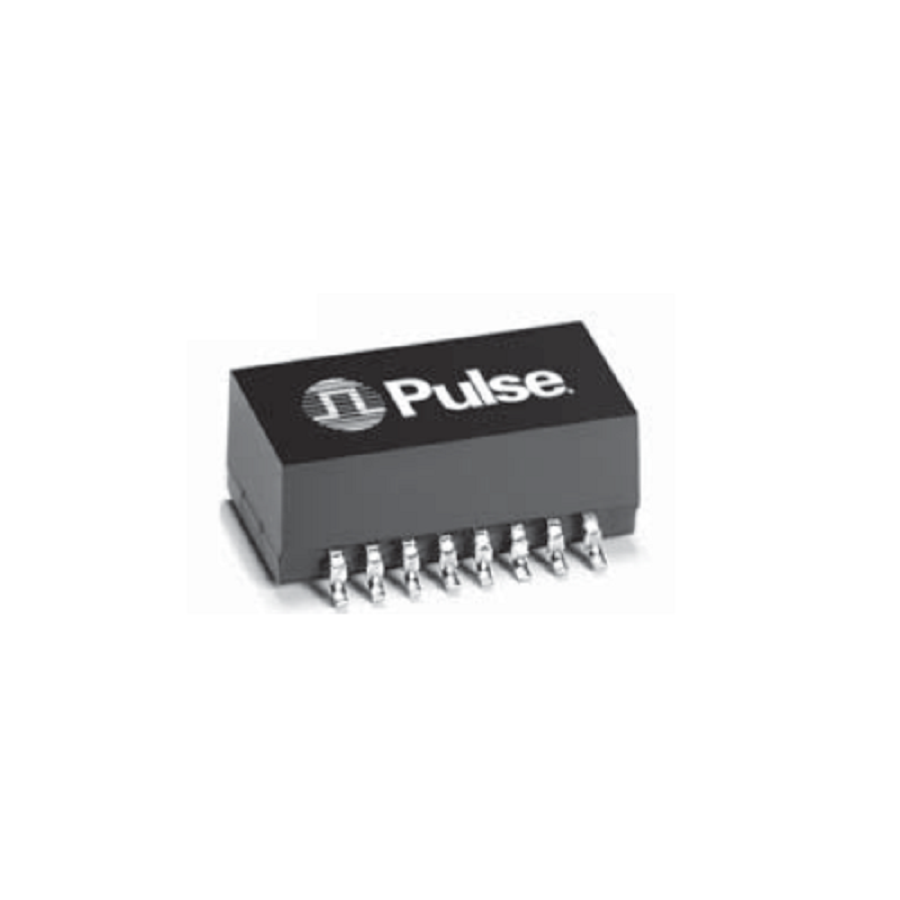

H1102NLT
Manufacturer:
Pulse Electronics
Mfr.Part #:
H1102NLT
Datasheet:
Description:
Transformers SMD/SMT 100 kHz to 100 MHz 350 µH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 6.22 mm |
| Length | 12.7 mm |
| Width | 9.53 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 16 |
| Height | 5.97 mm |
| Packaging | Reel |
| Depth | 9.65 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 2.8 g |
| Contact Plating | Copper, Tin |
| Lead/Base Style | Gull Wing |
| Frequency | 100 kHz to 100 MHz |
| DC Resistance (DCR) | 650 mΩ |
| Insertion Loss (dB) | -1.1 dB |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Shielding | Unshielded |
| Inductance | 350 µH |
| Turns Ratio | 1:1 |
| Isolation Voltage | 1.5 kV |
| Return Loss | -10 dB |
| Schedule B | 8504312000 |
Stock: 7876
Distributors
pcbx
pcbxUnit Price$0.37123
Ext.Price$0.37123
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37123 | $0.37123 |
| 10 | $0.27427 | $2.74270 |
| 50 | $0.22730 | $11.36500 |
| 100 | $0.18837 | $18.83700 |
| 500 | $0.18211 | $91.05500 |
| 1000 | $0.17606 | $176.06000 |
